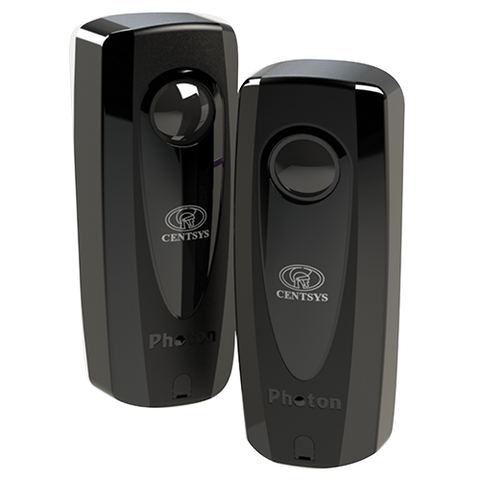

Centsys Photon II infrared gate safety PE beams
MAIN FEATURES:
- Transmitter is wireless and battery-operated saving time and money.
- Two year battery life using two AA Alkline batteries (included).
- 30 metre operating range – ideal for almost any entrance gate.
- Fully ant-proof and weather-resistant enclosure for greater reliability.
- Transmitter provides audible feedback for easy setup and battery-low indication.
- Low power consumption throughout the system for greater efficiency.
- Installer Mode with audible feedback makes alignment a dream.
- Elegant slimline construction – only 50mm wide.
- Compatible with Intruder-detection Alarms for enhanced perimeter security3.
DATA DETAILS
- Power Supply Transmitter - 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product
- Receiver - 12 - 24V AC 12 - 30V DC
- Receiver Power Consumption - 30mA @ 12V DC
- Transmitter Battery Life - Minimum 2 years
- Battery Low Indication - Audible Beep
- Specified Operating Distance - 30m
- Alignment - Automatic – 1m² @ 10m (circular area - assumes parallel surface)
- Output Contact - Fail-safe, N/C and N/O, potential free contact
- Output Contact Rating - 3A @ 30V DC Non-inductive
- Operating Temperature - -15°C - +65°C
- Operating Humidity - 0 - 90° Non-condensing
- Housing Material - 0 - 90° Non-condensing
- Degree of Protection - IP54
